Infrared quartz heater

Home > Golden 8 Infrared Quartz Heater > Infrared quartz heater

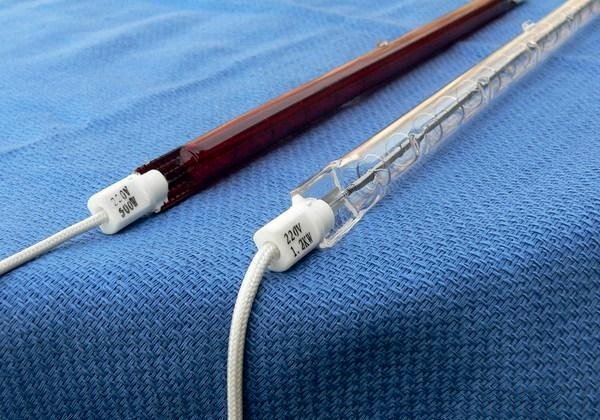

Original Picture

Product Name:
Infrared quartz heater
Model No.:

Product Description: Infrared quartz heater

一、Typical application:
Paint drying,tobacco industry,textile industry,plastic industry,printing industry , agriculture,food industry,pharmaceutical industry,rubber industry,bone glue industry , papermaking and carton industry,wood and wood manufacture industry,ceramics and ceramic industry,as well as required non-pollution environment,including acid-base on corrosive heating occasion .

二、Main technical parameters
1.Voltage rating : 380V、220V、110V、55V；
2.Element length:100-3000mm(as required),
3.Element diameter:φ8-58mm(as required) (in common useφ18mm）
4.Power matching :100W-5KW/piece(as customer )
5. Thermal response speed:3-5 minute
6.Surface temperature:low temperature 380-460℃,middle temperature 500-580℃,can increase to 700-1100℃ or reduce to 100-300℃according to customer’s requirements .

7. Spectral region:2.5-6

8.Spectrum emission coefficient :0.92(wavelength ;4-8;11-25)

SLQ8 series product structure type:horizontal ,vertical,immersed,single(double ) leads .
SLQ8 series product structure type:SLQ8Q(air heating)、SLQ8Y（liquid heating）、SLQ8G（double pore one side gold-plate）etc .

SLQ8Q series for150-650℃temperature range ,heating ,dry ,curing ,dehydration . SLQ8 series is liquid immersive , applied for chemical polishing thick liquid heat , acid and alkali resistance,corrosion resistance .

SLQ8 type far infrared quartz tube electric heating element main technical data (3W/cm2）
